Innovative ID Design

Detachable ring design, multiple sizes to fit various finger dimensions

Touch Module

Highly Flexible ProxSense® Device
Deep Sleep Current: 9μA

No. Gesture Entertainment Mode Sports Mode Action Camera
1 Swipe Up/Down Video Browsing Switch Songs N/A
2 Swipe Up/Down & Hold N/A Adjust Focus (Not supported on iOS) N/A
3 Swipe Left/Right Page Browsing Camera Mode Switch (Not supported on iOS) N/A
4 Swipe Left/Right & Hold Volume Control Volume Control Swipe Right to Switch Mode
5 Single Click Play/Pause Play/Pause N/A
6 Double Click Like Front/Rear Camera Switch (Not supported on iOS) N/A
7 Press & Hold N/A N/A N/A

Tact Switch

General Operations
Single Click: Wake / Camera Shutter
Quick Press 5 Times: Power Off
Double Click: Switch Entertainment Mode / Sports Mode
Long Press 5+ Seconds: Unpair Device
Triple Click: Activate Action Camera Control
No. Button Action Entertainment Mode Sports Mode GoPro
Action Camera
Control		 Insta360
Action Camera
Control		 DJI
Action Camera
Control
1 Single Click Switch
Coordinate Point;
Activate LED,
Show Current Mode		 Take Photo;
Activate LED
to Show
Current Mode		 Take Photo;Record/Stop Recording;Blue Light Flashes Once Take Photo;
Record/Stop Recording;
Blue Light Flashes Once		 Take Photo;
Record/Stop Recording;
Blue Light Flashes Once
2 Double Click Entertainment
/Sports Mode Cycle Switch		 Entertainment
/Sports Mode Cycle Switch		 Pair/Wake;
Blue Light Flashes Once		 Screen Off/On;
Blue Light Flashes Twice		 Pair/Wake;
Blue Light Flashes Once
3 Press 2 Seconds until light flashes then release Return to Home Open Camera;
Video/Photo Cycle Switch		 Switch Timelapse
/Video/Photo
Mode		 Switch Timelapse
/Video/Photo
Mode		 Switch
Video/Photo
Mode
4 Long Press 5+ Seconds Unpair Unpair Unpair Unpair Unpair
5 5 Clicks Power Off Power Off Power Off Power Off Power Off

Compatible with action cameras

Compatible models：

GoPro: 13 Black、12 Black、9 Black、MAX2

Insta 360：X3、X4、X4 air、X5、ACE PRO、ACE PRO 2

DJI：Action 5Pro、Action 6、Action 4、Osmo 360

Magnetic Charging

Lithium Battery Capacity: 3.7V, 20mAh (CR301012)

Charging Current ≤20mA

Charging Time ≈1 Hour

Continuous Working Time When Fully Charged ≈8 Hours

Continuous Standby Time When Fully Charged >2 Months

Sleep and Activation

Activation: Press TS


Sleep Mode:

Bluetooth Not Connected Mode: Returns to sleep mode after 40 seconds of inactivity
Bluetooth Connected Mode: Returns to sleep mode after 60 seconds (1 minute) of inactivity
Force Sleep: 5 Consecutive Clicks

Bluetooth Pairing and Clearing

Bluetooth Pairing

Open Bluetooth settings on your phone, search for "Ring II", click to connect.
Some phones may pop up a pairing prompt, just click OK.
After successful Bluetooth pairing, you can see it's connected on your phone.
The breathing light on Ring II will flash once, indicating successful Bluetooth pairing.


Bluetooth Management

Unpaired State: LED continuously flashes
Paired: LED breathes (flashes softly) only 1 time
Clear Pairing: Long press TS for 5+ seconds

APP

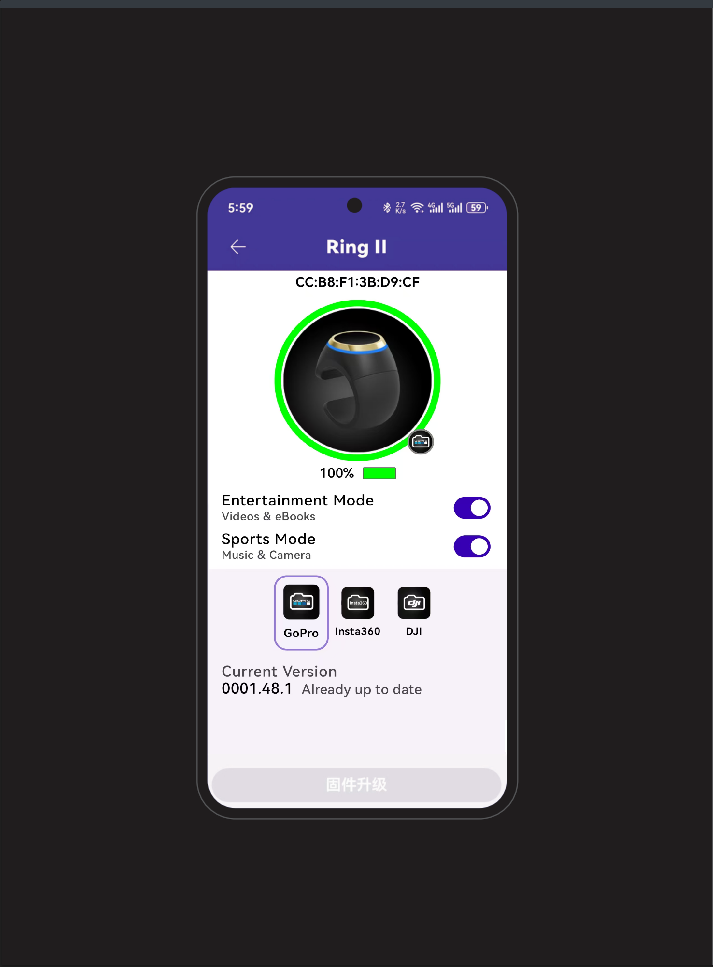

APP can view Ring II battery level and version information, supports FW upgrade:
1. Device Version Management
2. Cloud-based Firmware Update Detection
3. Ring Function Mode On/Off Control (requires APP v1.6 or later)
4. OTA Update (requires charging constraint)
    .Supports Manual OTA
    .When low battery (battery <20%), it is recommended to charge promptly
    .For OTA upgrade, it is recommended that battery level >60%

Package

Pink Entertainment Mode




LED Indicator

Red Sports Mode


Operation Status:
Blue Halo for Action Camera Mode    Power On: On
Red Halo for Sports Mode          Light Touch Click: Flashes Once Per Click
Pink Halo for Entertainment Mode          Pairing Cleared: Continuously Flashes
Connected: Breathes (flashes softly) Once

Blue Action Camera Control


Fully Charged: Continuously Lit
Low Battery (<30%): Single Flash Every 10 Seconds
Critical Battery (<10%): Single Flash Every 5 Seconds
Charging: Red Light On, Breathes Once Every 10 Seconds

Specifications

Bluetooth Low Energy 5.3 Transmission

Frequency Range: 2402-2480MHz
Transmit Power, up to 4dBm
Receive Sensitivity: -70dBm
Operation Range, at least 10m

Touch Module

Highly Flexible ProxSense® Device
Deep Sleep Current: 9μA
4x4 Capacitive Touch Grid, 12 Channels

Battery

Rechargeable Lithium Battery 1xCR301012, Total Capacity 3.7V/20mAh,
Battery Charging Current Not More Than 20mA.
Supports Continuous Work for 8 Hours,
Low Power Mode for More Than 2 Months
Battery Not Completely Depleted for More Than 1 Month in Shutdown Mode
Charging Time About 1 Hour.

Note: If the device is not used for a long time, please charge it at least once every 6 months!

Operating Temperature

Product Operating Temperature Range is 0°C to 45°C



Storage Temperature

Product Storage Temperature is -40°C to 80°C
